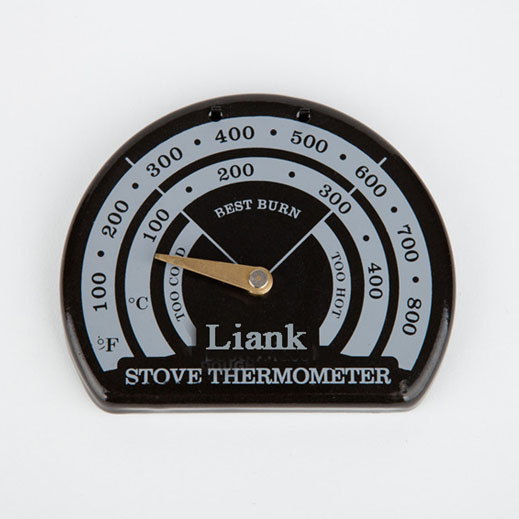

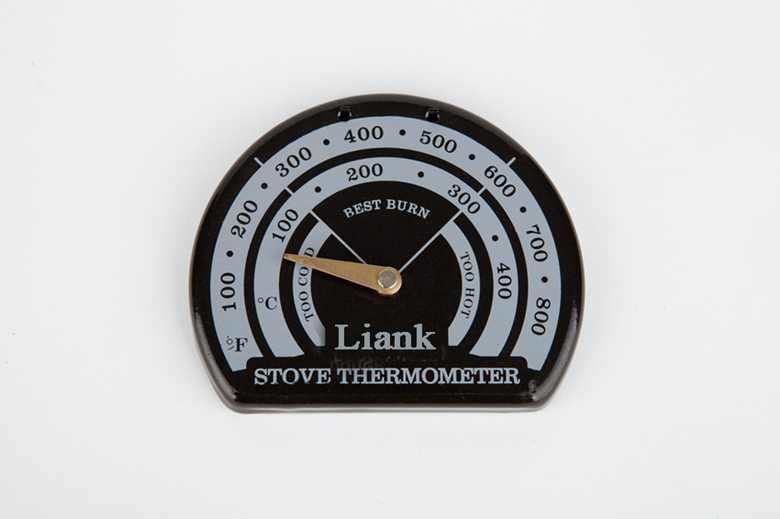

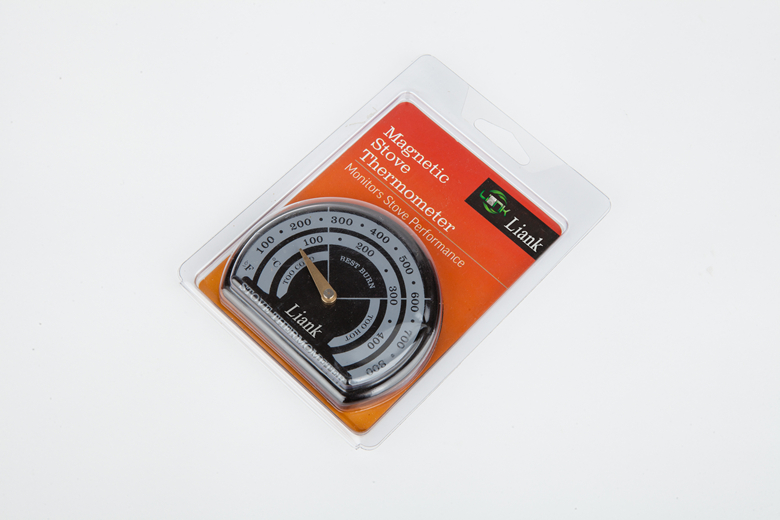

Stove Thermometer ST-001

Monitors stove performance from 40-480℃

Identifies standard optimum burn temperature 135-300 ℃ for efficient stove use.

( Optimun burn range may vary depending on stove --please consult the stove operating manual.)

Warns of potential for creostoe and soot build-up when the stoves  is burning too cold -up to 135 ℃ --increase air flow and  or add fuel.

Warn of potential stove overheating inefficiency and risks of chimney damage - over 300 ℃ --reduce air flow

Installation

Install thermometer on vertical face of flue pipe on more than 6" (150mm) above the top of surface of the stove .

The thermometer should also be attached onto the flue pipe using the wire enclosed which is passed through the 2 holes in the face of the thermometer.

This will help keep the thermometer in place should the thermometer lose magnetism if the stove overheats.

The thermometer is not suitable for double wall flue pipe.
